QHL 13
Mã sản phẩmqhl-13
Giá:Liên hệ
Excellent heat radiation, optical and electrical ability.
Die-casting Aluminum body with power-coating and anticorrosion treatment Humanized design concept, easy to install and maintain
Description
Luminaire available from 60-360W
Body made of die-cast aluminium
Polyester powder coating. Any colour available Colour temperature: 3000K -6500K
High recyclability rate
Application
Street, Roadway, Public square, Parking lot
Turn to Page27
Main Characteristics Luminaire
LED Source: | CREE or PHILIPS |
Body & Top Cover: | High Pressure Die Casting Aluminum |
Color Rengering Index: | Ra>75 |
Optical unit: | High efficiency performance alum |

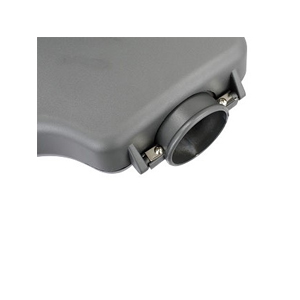

Connection to column | Φ60mm |
Power Factor: | >0.95 |
Classification: | IP66 |
Impact Resistance: | Ik09 |
Electrical Class: | Class ll |
Main Characteristics Luminaire
BML-127
Model | Dimension | MODULE (PCS) | POWER | EFFICIENCY (LM/W) | ||
L (mm) | W (mm) | H (mm) | ||||
BML-127 | 480 | 328 | 110 | 2 module | 60W-120W | 120-130 |
BML-127 | 560 | 328 | 110 | 2 module | 120W-180W | 120-130 |
BML-127 | 640 | 328 | 110 | 2 module | 180W-240W | 120-130 |
BML-127 | 720 | 328 | 110 | 2 module | 240W-300W | 120-130 |
BML-127 | 800 | 328 | 110 | 2 module | 300W-360W | 120-130 |

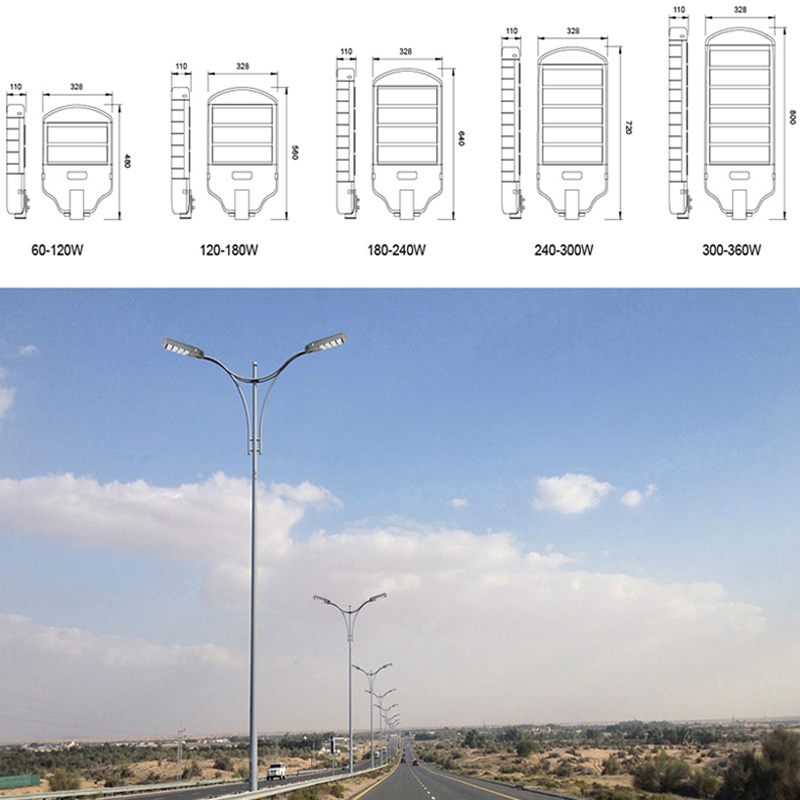

Product Dimension
